Features:

• Ideal for gated communities, parking facilities, and industrial sites
• Easy to set-up and use, up to 480 remotes can be programmed with a few keystrokes
• Easy to add, suspend, and delete transmitters through programming mode, no transmitter dip switches to set
• Supports 480 block coded transmitters or 238 individual transmitters/wireless keypad entry codes
• Supports six fully supervised MGT safety edge transmitters
• Three output relays; one for access, one for obstacle, one programmable for access or obstacle
• High-gain superheterodyne receiver
• RF frequency: 318 MHz
• 4.45" W x 5.75" H x 1.5" D (without antenna)

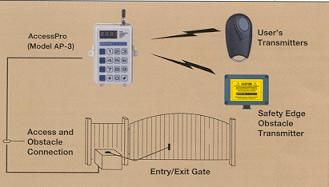

The AP-5 Multipurpose Wireless Access Controller is designed for a broad range of applications and can control one or two door strikes, mag-locks, barrier gates, automatic gates, or door operators. Its wireless design and small size fits a variety of access control requirements.

The unit's built-in high-gain superheterodyne receiver picks up transmitter signals from up to 500 feet away. The optional EXA-2000 antenna can be used for additional range. Up to 480 Linear MegaCode® transmitters and six Model MGT supervised safety edge transmitters can be programmed into the AP-5’s memory. Up to 238 entry codes can be programmed for activation by one or more MegaCode® wireless keypads. The AP-5 will retain its memory, even without power.

Three dry contact relay outputs are provided. One relay is dedicated for access control, another dedicated for obstacle detection, and the third programmable for either access or obstacle. Access relays can be set for timed or latch-on/latch-off toggle operation. The on or off toggle state of a relay is maintained even after power interruption. For entrapment detection, obstacle relays activate from MGT safety edge transmitters and connect to the obstacle input of the access device. OPEN REQUEST input terminals are supplied for hardwired activation of the access devices with an external pushbutton or keyswitch.

The AP-5 monitors each MGT safety edge transmitter for hourly status reports, tamper signals, and low battery signals. A beep will sound every 5 seconds if a fault occurs and the trouble source can be displayed. An access transmitter must be activated twice to trigger the access relay if a supervisory trouble condition exists on any MGT transmitter.

The AP-5 can be powered from 12-24 Volts AC or DC. The Form C relay outputs can switch up to 1 Amp each. An EARTH GROUND terminal is provided as a recommended connection for maximum lightning and static protection.

General Specifications

Outputs

Relay: two form "C" relays rated at 1amp @ 24 Volts AC or DC; one for control and the one for obstacle.

Display: Three eight-segment displays to provide system activity and program information; LEDs used in conjunction with displays to provide transmitter and radio activity

Inputs

RF: integral 318 MHz super regenerative receiver @ -94 dBm sensitivity (nominal); receives MegaCode format transmitters

Open Request: Terminal input and button activation triggers the control relay

Keypad: integral 16-key membrane style keypad with tactile feedback

Power

12 to 24 volts ac or dc; 250 mA maximum

Operating Temperature

-22 degree to +170 degree F (-30 degree to +70 degree C)

Dimensions

5.23 x 3.625 x 1.5 inch

Standard Equipment

AP-5 controller; supports 480 MegaCode block coded transmitters or 238 individual transmitters/wireless keypad entry codes, plus one MGT safety edge transmitter; 9-1/2 inch whip antenna; 3 feet of coaxial cable; barrel connector

Accessories

Antennas:

1. EXA-1000: Remote, omnidirectional; includes mounting hardware and five feet of cable
2. EXA-2000: Remote, directional-type; includes mounting hardware and ten feet of cable
