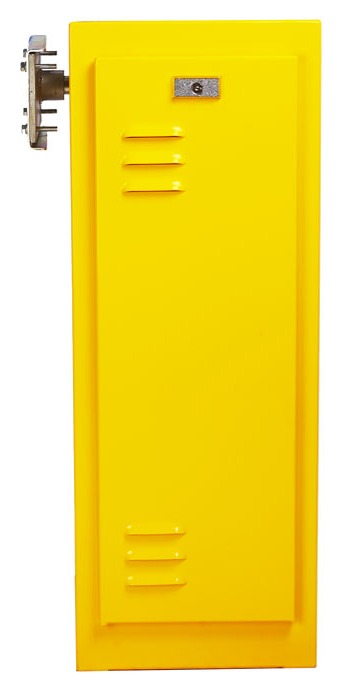

Model  BGU Lift Gate
for Control of Vehicle Traffic

---

OSCO Lift-Gate Models BGU and BGU-D can be used for parking applications and revenue control. Through switch selections, the gate operator is universal and suitable for all installation and operational functions. Switch selection allows for full flexibility as to how and when the arm comes down in traffic control situations. The added advantage to the DC operator is the automatic-open feature upon power loss. When the gate opener senses AC power is no longer present, the arm will cycle open, remaining open until AC power is restored (fail safe) OR continues normal operation while monitoring the battery level. Once the batteries are low the unit will cycle open until AC power is restored or the batteries receive a full charge (fail secure).

Specifications for the OSCO BGU Lift Gate Operator

Electrical Specifications:	Cabinet:

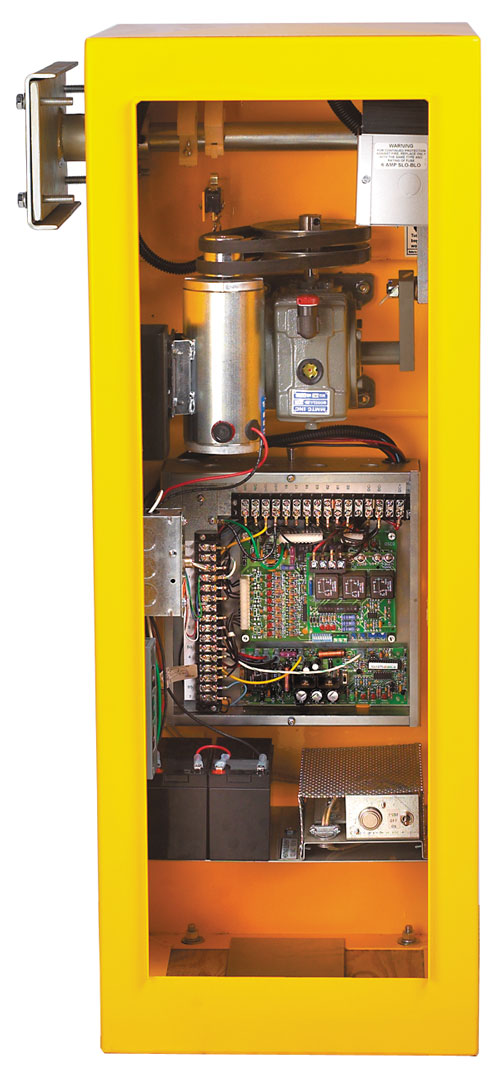

1/3 hp, 115 VAC, single-phase, thermally-protected open-frame, resilient-mounted PSC motor Power on/off switc Duplex receptacle (115 VAC units only) Three-button control station included Accessory connections are 24-volt AC or DC Easily adjustable cam-operated limit switches Motor has manually-resettable overload Full system capable for access control and reversing devices Mechanical: Dual V-Belt Heavy-duty right-angle oil bath gear reduction Heavy-duty harmonic link with oil impregnated bronze bushings Gate arm clamp with cutting bracke Anti-Entrapment/Detection Devices: This Lift gate is pre-wired to accept contact and non-contact detection devices such as reverse edges and/or photo electric eyes. Control Circuit: Solid state circuit board, 24 VDC Inherent current sensing system 15 LEDs for easy setup and troubleshooting Built-in maximum run timer and auto close timer Master/Slave - simple three-wire commenction	Weather-resistant galvannealed steel cabinet with powder coat finish
	Warning Signals:
	Pre-start audio/visual outputs provided
	Options for the BGU:
	230V, single-phase operation Stainless steel cabinet for installations in areas where high concentration of corrosive materials is present Thermostatically-controlled strip heater Arm light kit

Loop detector are used with lift gates to detect the vehicle as either a Free Exit Loop, reset loop, or a safty look. To install cut theconcrete and lay the wire in and then run the wire back to the operator and then caulk over the wire. If you need further assistance call our sales department at 800.878.7829 between the hours of 8:00 AM - 5:00 PM EST. or email us at sales@discountfence.com.

Pricing for the OSCO BGU Barrier Gate Operator

Model	Application	HP	Voltage Phase	Shipping Weight	Arm Size	List Price	Order
BGU-10-311	Parking applications and provisions for single_button, detector, radio, and three button	1/3	115-1	200lbs	10 ft.	$2,085.00	White Yellow
BGU-12-311	Parking applications and provisions for single_button, detector, radio, and three button	1/3	115-1	200lbs	12 ft.	$2,085.00	White Yellow
BGU-14-311	Parking applications and provisions for single_button, detector, radio, and three button	1/3	115-1	200lbs	14 ft.	$2,125.00	White Yellow

Accessories for the BGU
2500-2207 - Low Voltage Surge suppressor ..................... $42.00
2510-262 - 115V Heater ............................................ $112.00
2800-111 - Articulating Arm for limited head room areas... $310.00
2650-057 - Adaption for shaft out opposite side............... $185.00
2650-088 - Adaption for opposite arm direction............... $20.00
2650-111 - Cold Weather Package ............................... $215.00 (includes heater, arctic oil, cogged belt)
Vehicle Detectors for gate opening or reversing devices
Deteck Look Detectors 2510-190 Single Detector prewired in operator, 24 VDC.....$270.00
2510-191 Two Detector prewired in operator, 24 VDC.....$530.00





Caution: Barrier gates are not for pedestrians! Automatic gate operators are designed for vehicular traffic only.Tthey are powerful and can cause serious injury or death. Accordingly, direct all pedestrian traffic to a separate pedestrian gate. UL325 requires the use of contact or non-contact anti-entrapment devices. ASTM F2200 requires that all exposed rollers are covered.
