Model BGU-D
The best in Battery Back-up Vehicle Traffic

OSCO Barrier-Gate Models BGU-D is the solution when a battery back-up is needed in you operator system. This unit is to be used for parking applications and revenue control.

Through switch selections, the gate operator is universal and suitable for all installation and operational functions. Switch selection allows for full flexibility as to how and when the arm comes down in traffic control situations.

The added advantage to the DC operator is the automatic-open feature upon power loss. When the gate opener senses AC power is no longer present, the arm will cycle open, remaining open until AC power is restored (fail safe) OR continues normal operation while monitoring the battery level. Once the batteries are low the unit will cycle open until AC power is restored or the batteries receive a full charge (fail secure).

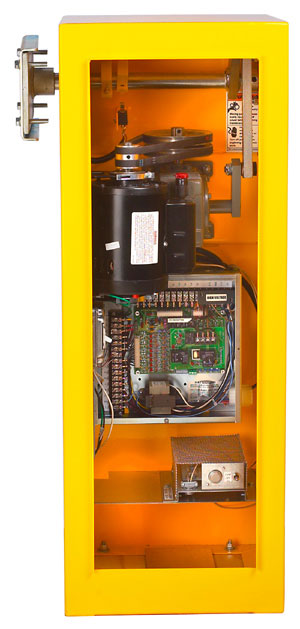

Specifications for the OSCO BGU-D Barrier Gate Operator

Electrical Specifications:

Cabinet:

Dual batteries charged by 115 VAC or optional solar panels
Charging circuit monitors and maintains battery levels, monitors AC availability, automatically switches to batteries when AC is removed, and automatically resumes AC operation
Control circuit options in absence of AC power:
Option 1: Fail safe (opens the gate and shuts down until AC power is restored)
Option 2: Fail secure (continues to cycle gate in normal operation until batteries run down and then cycles open. Resumes cycling when existing batteries are charged or when fresh batteries are installed)

Mechanical:

Dual V-Belt
Heavy-duty right-angle oil bath gear reduction
Heavy-duty harmonic link with oil impregnated bronze bushings
Gate arm clamp with cutting bracket

Anti-Entrapment/Detection Devices:

Operator is pre-wired to accept contact and non-contact detection devices such as reverse edges and/or photo electric eyes.

Control Circuit:

Solid state circuit board, 24 VDC
Inherent current sensing system
15 LEDs for easy setup and troubleshooting
Built-in maximum run timer and auto close timer
Master/Slave - simple three-wire commenction

Weather-resistant galvannealed steel cabinet with powder coat finish

Warning Signals:

Pre-start audio/visual outputs provided

Options for the BGU:

230V, single-phase operation
Stainless steel cabinet for installations in areas where high concentration of corrosive materials is present
Thermostatically-controlled strip heater
Arm light kit

Loop detector are used with barrier gates to detect the vehicle as either a Free Exit Loop, reset loop, or a safty look. To install cut theconcrete and lay the wire in and then run the wire back to the operator and then caulk over the wire.

If you need further assistance call our sales department at 800.878.7829 between the hours of 8:00 AM - 5:00 PM EST. or email us at sales@discountfence.com.

Pricing for the OSCO BGU-D Barrier Gate Operator with battery backup

Model	Application	HP	Voltage Phase	Shipping Weight	Arm Size	List Price	Order
BGU-D-10	Parking applications and provisions for single_button, detector, radio, and three button plus Battery Back-up	1/2	115-1 Supply or Solar	200lbs	10 ft.	$2,585.95
BGU-D-12	Parking applications and provisions for single_button, detector, radio, and three button plus Battery Back-up	1/2	115-1 Supply or Solar	200lbs	12 ft.	$2,585.95
BGU-D-14	Parking applications and provisions for single_button, detector, radio, and three button plus Battery Back-up	1/2	115-1 Supply or Solar	200lbs	14 ft.	$2,625.95

Accessories for the BGU-D
2500-2207 - Low Voltage Surge suppressor ..................... $42.00
2510-262 - 115V Heater ............................................ $112.00
2800-111 - Articulating Arm for limited head room areas... $310.00
2650-057 - Adaption for shaft out opposite side............... $185.00
2650-088 - Adaption for opposite arm direction............... $20.00
2650-111 - Cold Weather Package ............................... $198.00 (includes heater, arctic oil, cogged belt)
Vehicle Detectors for gate opening or reversing devices
Deteck Look Detectors 2510-190 Single Detector prewired in operator, 24 VDC.....$270.00
2510-191 Two Detector prewired in operator, 24 VDC.....$530.00

Caution: Barrier gates are not for pedestrians! Automatic gate operators are designed for vehicular traffic only.Tthey are powerful and can cause serious injury or death. Accordingly, direct all pedestrian traffic to a separate pedestrian gate. UL325 requires the use of contact or non-contact anti-entrapment devices. ASTM F2200 requires that all exposed rollers are covered.
