The SWR Swing Gate Opener for gate up to 17' in length and 500 lbs per gate leaf |
|
|
SWR Series - Linear Swing Gate Operators |
|
|
Gate up to 500 pounds!
and 17' in length!
SWR Gate Openers from $992.62 |
|
|
|
Operator
Speciality
Automatic
Gate Operators
Model SWR
 |
SWC Commercial
1/2 or 1 HP continuous-duty PSC motor- 115 VAC or 230 VAC single phase
SWD Commercial/Residential
DC-powered battery back-up with advanced soft start/soft stop motor control- Full-time 1/2 HP DC motor
- Selectable fail-safe or fail-secure modes of operation
- Solar power capable
SWR Residential
1/2 HP PSC motor- 115 VAC or 230 VAC single phase

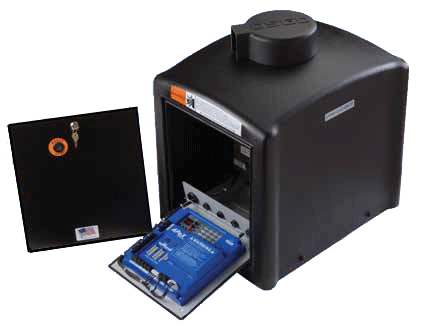

Crank style- Black UV stabilized polyethylene cover
- Pad mount standard; post mount optional
- Exterior reset button
- UL325/UL991 compliant APeX controller
- Fully integrated radio receiver
|
|
SW
SERIES SWING GATE OPERATOR SPECIFICATIONS |
|
Model |
|
HP |
Voltage
(Single Phase) |
Drive
Type |
Maximum
Gate Length |
Maximum
Gate Weight |
Seconds
to Open |
Maximum
Cycles |
|
SWC |
SWC-2 |
1/2 |
115
of 230 V |
crank |
17' |
600
lbs |
11-14 |
continuous
duty |
| SWC-1 |
1 |
115
or 230 V |
crank |
19' |
1000
lbs |
11-14 |
continuous
duty |
|
SWD |
SWD-211 |
1/2 |
115V/24VDC
Battery Backup
(solar charger optional) |
crank |
18' |
700
lbs |
11-14 |
continuous
duty |
|
SWR |
SWR-211 |
1/2 |
115V |
crank |
15' |
500
lbs |
11-14 |
150/day |
| SWR-221 |
1/2 |
230V |
crank |
15' |
500
lbs |
11-14 |
150/day |
|

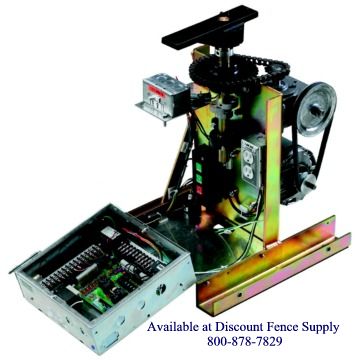

1. Cam Operated Limits
Easily accessible through access door
2.APeX Controller
- UL325/UL991 compliant 24 VDC control module
- Full featured for access control, security and entrapment protection
3. Steel Crank
- Easily removable
- Integrated manual disconnect
Gear reducer and pillow block bearing for smooth, reliable, quiet power transmission
4. Heavy-Duty Components
5. Standard Convience Features
- Exterior reset button
- Power on/off button
- Accessory power outlet on115V machines
- Integrated 3-button station
- Includes APeX Controller with integrated radio receiver, plug-in loop detector capability, surge protection, and easy to read labeling standard
|
Electrical
- Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
- Continuous tone entrapment alarm with reset button
- Integrated programmable warning beeper during gate movement
- LED diagnostic display for ease of setup and troubleshooting
- Selectable pre-start alarm with provision and ADA compliant visual pre-start and run alarm
- Regulated 24 Volt DC power available for access control accessories
- Integrated maximum run and auto close timer (0-9 minutes)
- Built-in networked dual gate capability using 3-wire shielded cable
Mechanical
- Heavy-duty, zinc-plated, steel chassis
- Right-angle gear reducer
- 1" diameter output shaft
- Optional adjustable torque limiter
- Heavy-duty pillow block bearings
- Universal pad mount standard; optional post mount kit
|
|
|
SWR Discounted Pricing
|
Item # |
Description |
Our Price |
Online Ordering |
SWR-211 |
SWR Swing Gate Opener (115V) |
$992.62 |
|
SWR-221 |
SWR Swing Gate Opener (230V) |
$1,034.37 |
|
Linear Accessories |
Item # |
Description |
Our Price |
Buy Now |
2120-483 |
Post Mount Kit |
$60.00 |
|
2500-1116 |
Heater,
115V |
$108.75 |
|
2500-2117 |
Heater,
230V |
$108.75 |
|
2650-111 |
Cold
Weather Package, 115V
(must be ordered with operator) |
$147.00 |
|
2650-112 |
Cold
Weather Package, 230V
(must be ordered with operator) |
$147.00 |
|
2100-2041 |
Base
Plate
(seals bottom of unit) |
$40.31 |
|
2650-121 |
Torque
Limiter, 5" (factory installed) SWR |
$157.50 |
|
2650-117 |
Torque
Limiter, 3" (factory installed) SWR |
$94.50 |
|
2650-124 |
SWD High-Cycle Modification
(#60 gear box) |
$59.25 |
|
Transmitters |
Item # |
Description |
Our Price |
Buy Now |
MT-1B |
Single Button Handheld Transmitter |
$29.50 |
|
MT-2B |
Double Button Handheld Transmitter |
$32.50 |
|
ACT-31B |
Single Button Miniature Transmitter |
$29.50 |
|
ACT-34B |
Four Button Miniature Transmitter |
$32.50 |
|
MGT |
Supervised Gate Edge Transmitter |
$145.00 |
|
Vehicle
Detectors (for use as an opening or reversing device) |
Item # |
Description |
Our Price |
Buy Now |
2510-190 |
Single
Detector
pre wired in operator, 24VDC |
$375.00 |
|
2510-191 |
Two (dual)
Detector
pre wired in operator, 24VDC |
$685.00 |
|
|
