DRIVE
- Powered by: a reliable 12 Volt (120 Watt)
- DC motor, 16:1 planetary gear drive system.
- Temperature rating: of motor:-5°F (-28°C)
to +160°F (71°C) battery rating
- Opening time: From 15 seconds.
- Range of arm stroke: is up to 11” (.3 m)

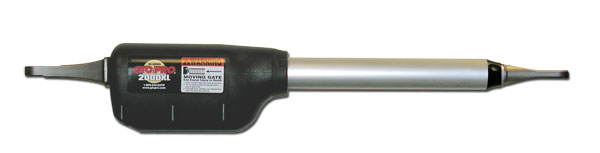

- Operator length with arm fully retracted is
33.75” (85.2 cm), mounting point to mounting point.
|
POWER
The PRO-SW2000XL system is powered by one 12 Volt DC / 7.0 amp hour, sealed,
rechargeable battery (included). Battery
charge is maintained by a120V AC/60
Htz input and 18V AC at 40 VA. output
transformer, rectified to 14V DC through
control board. |
OPTIONS
- Solar Panel Charger: silicon alloy panel.
Generates minimum of 10 watts at 600 mA. A gated diode on the
control board prevents battery discharge. (FM123)
- The PRO-SW2002XL kit contains both the master arm and slave
operator arm with a 32 foot (9.8m) power cable for a dual gate
application.
- Push to open applications: Require one (349IH) bracket
per operator.
|
