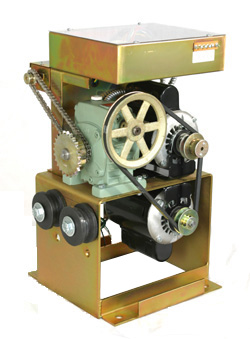

| Diamond
Control Board - The unique Diamond board uses state
of the art technology combined with easy of use to provide
many exceptional new features that cannot be found on any
other board.
2 Wire Maser/Slave
- The Diamond board uses a unique Master/Slave system
that requires only two wires.
Motor Brake - If
the on position is selected electric gate opener, the
gate will stop instantly when it reaches the limit switches.
This is essential on uphill/downhill applications and
on all Fail Safe operations.
One Pass - This
tailgating feature works with the reverse loop to allow
only one car to pass. After the car passes the gate closes
instantly, if a second car approaches the gate stops,
and resumes closing once the car has left.
Stop-Reverse -
This radio feature allows the transmitter to work as a
three-button station and is useful for partial opening.
The first command of the electric gate opener opens the
gate, the second stops the gate, and the third command
will close the gate.
Timer - The adjustable
timer can be set from 1 to 60 seconds, with a maximum
run time of 60 seconds.
Overload - If the
motor reaches the stall amp for 3 seconds, it will automatically
shut down.
Receiver - The
receiver terminal is mounted on the control box for easy
installation and is pre-wired for a 3-wire or 4-wire receiver.
Stainless Steel Access
Door - Eagle offers a full access to the control board
through the locking stainless steel door on its electric
gate openers.
|
ERD - If the gate
hits an obstruction while closing, it will re-open. If
it hits an obstruction while opening, it will stop, reverse
6 inches and stop again. The sensitivity is adjustable
separately for the open and close cycles.
Global Inputs -
The Diamond board's Global Inputs include key switch,
keypad, exit loop, phantom loop, reverse loop, edge sensor,
open, stop, and close.
Outputs - Outputs
include on board 24 VDC for MAG Lock, alarm, and 24 VAC
auxiliary power.
Safety Alarm -
If the gate hits an object twice while closing or opening,
the electric gate opener will shut down for 5 minutes.
On the Diamond board you have two options for reset mode.
Selecting the off position will require a manual reset
of the board if the previous happens. However, by selecting
the on position, the system will automatically reset itself.
120 VAC Power Outlets
- The operator contains two 120 VAC Power Outlets for
the users convenience.
Power on/off Switch
- The operator has an easily accessible power disconnect
switch that allows for easy installation and service.
No Pinch Arm -
This safety features prohibits the arm from extending
past the operator's body when the arm is in the fully
extended position.
Gate Opening -
Can operate to either the left or right side.
|
