| MODEL

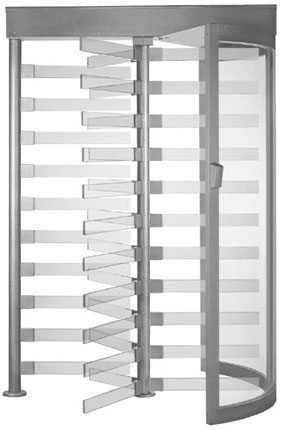

CPST FULL HEIGHT TURNSTILE |
|
|||||||
 |

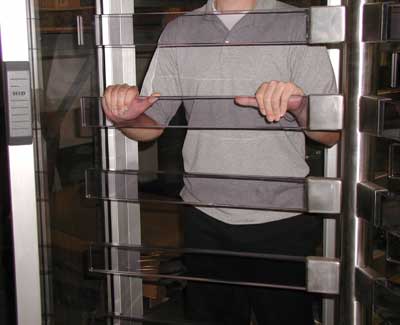

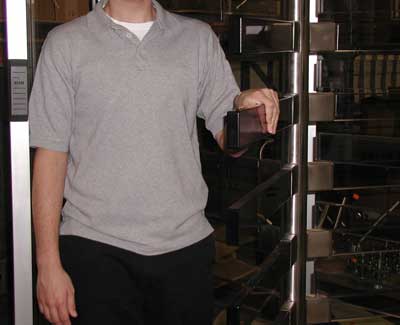

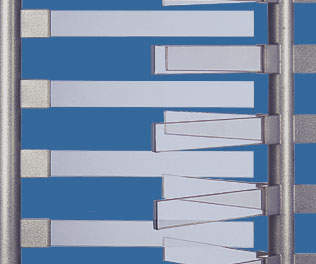

Polycarbonate Arms - The CPST turnstile has virtually unbreakable arms consturcted from clear 1" x 3" Lexguard® MP 1000 laminate material, with a Margard® surface. | Back to Top | |
||||||
|
Stainless Steel Components - Alvarado full height turnstiles feature an investment grade stainless steel mechanism and case hardened stainless steel lock arms to ensure a consistent, smooth rotation and years of trouble-free service. | Back to Top | |
 |
||||||
 |
Top Channel Cover - CPST turnstiles feature a stainless steel top channel cover, which provides superior corrosion protection versus zinc or cold rolled steel. | Back to Top | |
||||||
|
Splined Shaft / Roto - All Alvarado full height turnstiles use double top roto bearings, one inside the top channel, and one underneath. Roto units are securely coupled to a splined top channel shaft. The splines provide a precision fit and assure proper timing. | Back to Top | |
 |
||||||
 |

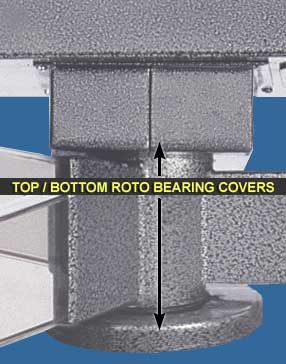

Bearing
Covers - Alvarado full height turnstiles have top and bottom bearing
covers to enhance the appearance and protect against tampering, weathering
and corrosion.
| Back to Top | |
||||||
| Friction
Brake Assembly - The adjustable braking mechanism consists of
a precision investment cast steel disc brake that rotates and maintains
contact with brake pads to provide friction braking during rotation.
| Back to Top | |
|
||||||
 |

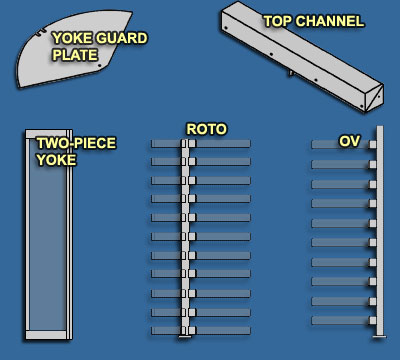

Turnstile Components - The CPST turnstile is shipped in sections for easy assembly | Back to Top | |
||||||
| Electrical
Features - 110VAC input is stepped down and rectified for low
voltage 12VDC operation. Other features include junction box with
dual power receptacle and on/off power switch. All electric models
have been tested and approved by City of Los Angeles Dept. of Building
and Safety (Underwriters Laboratories Standard UL-325).
| Back to Top | |
 |
||||||
 |
Activation Interface - Alvarado's full height turnstiles are activated (unlocked) by supplying an isolated, momentary dry contact. No additional interface relay is required. | Back to Top | |
||||||
|
Timed Delay Auto Relock - Once activated (unlocked) the user has 20 seconds to pass through the turnstile. If not rotated within the 20 second time period, the turnstile will automatically relock. No additional time delay relay is required. As an option, an Adjustable Timed Delay Auto Relock is also available, which allows adjustments or disabling of the time delay relock. | Back to Top | |
 |
||||||
 |
Turnstile Rotation Feedback Signal - A feedback signal in the form of a relay output is sent each time there is a turnstile rotation. Individual signals are provided for each direction of rotation. | Back to Top | |
||||||
|
Self Centering - A precision hydraulic self-centering mechanism corrects under (less than 120°) or over (more than 120°) rotation of the arms following completion of passage, automatically returning arms to the "home" position. | Back to Top | |
 |
||||||
 |
Fail Safe Option - This Alvarado full height turnstile option replaces the standard Fail Lock mode. The Fail Safe option allows free rotation upon loss of power for one or both electrically controlled directions. | Back to Top | |
||||||
|

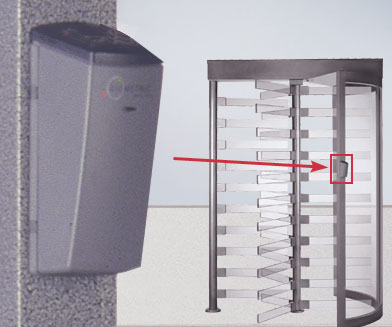

Card Reader Mounting Options - CPST turnstiles may be ordered with hardware for mounting card readers. | Back to Top | |
 |
||||||
 |
Red/Green Status Lights - When used in conjunction with access control systems, Alvarado full height turnstiles may be ordered with Red/Green Status Lights mounted within the top channel. The Green LED pattern is activated when a valid card is scanned, and indicates that the turnstile is momentarily unlocked to permit a single passage. The Red LED pattern shows that the turnstile remains in locked status. | Back to Top | |
||||||
| Red/Green/Yellow
Status Lights - When used in conjunction with access control systems,
Alvarado full height turnstiles may be ordered with Red/Green/Yellow
status lights mounted within the top channel. Yellow LED's are lit
when the turnstile is ready to scan. A valid scan unlocks the turnstile
and is indicated by the Green LED pattern. Invalid scans cause the
turnstile to remain locked and are indicated via the Red LED pattern.
| Back to Top | |
 |
||||||
 |
Remote Locking with Open/Closed Lights - The Remote Locking Option allows bypass of the access control system to remotely lock or "close" the turnstile. The photo above shows the top channel of a full height turnstile with highly visible "Open/Closed" Lights, an additional option designed to be used in conjunction with remote locking. | Back to Top | |
||||||
| Key
Override - This option for Alvarado full height turnstiles unlocks
one or both directions of passage (separate override required for
each direction).
| Back to Top | |
 |
||||||
 |
Serial Interface - This option allows the turnstile to communicate with a PC or controller via RS-232 serial communication. | Back to Top | |
||||||
| Battery
Backup Option - Provides integrated backup power for electrically
operated models.
| Back to Top | |
 |
||||||
 |
Tinted Polycarbonate Yoke | ||||||
|One
Year Limited Warranty|
