Select a feature or option to view further details.

FEATURES (ALL)

• Comfortable Passage Width

• Single or Bi-directional Models

• Fully Welded Steel Construction

• Steel Kick Plate

• Self Closure Mechanism

• Hydraulic Dampener
  (single direction gates only)

FEATURES (ELECTRIC)

• Low Voltage Operation

• Electric Locks/Activation

• Time Delay Auto Relock
  (bi-directional gates only)

OPTIONS

• Extended Gate Arms

• Gate Status Relay

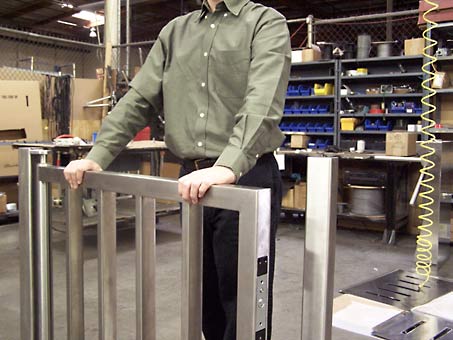

Comfortable Passage Width - When fully open, VMG(X) gates feature approximately 36" of passage width clearance, depending upon model/lock configuration.

| Back to Top |

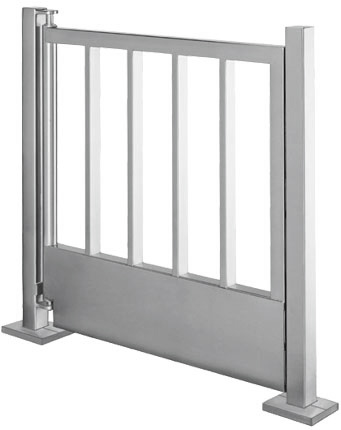

Single or Bi-Directional Gate Swing - Single direction gates include a stop tab and are available with right hand (shown) or left hand swing. Bi-directional gates swing in either direction.

| Back to Top |

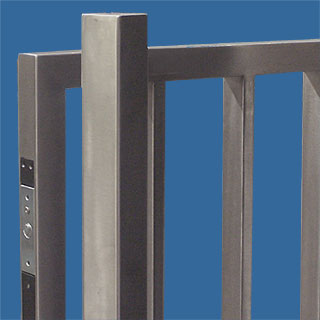

Fully Welded Construction - VMG(X) gate arm assemblies and posts are constructed from tubular stainless steel. with all welds ground and polished smooth.

| Back to Top |

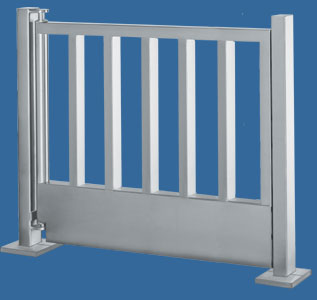

Kick Plate - VMG(X) gates feature a steel kick plate welded to the bottom of the gate arm assembly.

| Back to Top |

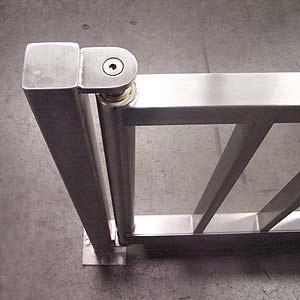

Self-Closing - VMG(X) gates include a gravity closure mechanism that automatically swings the gate arm back to the closed position after passage

| Back to Top |

Hydraulic Dampener - Single direction VMG gates feature a hydraulic dampener to prevent the gate arm from slamming.

| Back to Top |

Low Voltage Operation - Standard input power requirement is 120 VAC. Primary power is stepped down and rectified for low voltage 12 VDC operation. The included step down transformer is shown being connected to conduit lead wires.

| Back to Top |

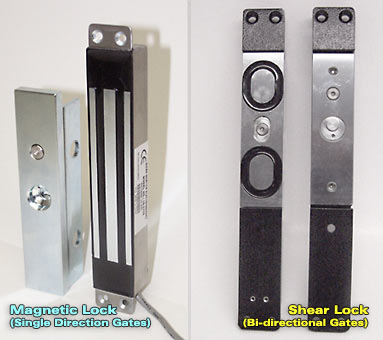

Electric Locks/Activation - VMGX gates are activated via dry contact switch. An open switch unlocks the gate, a closed switch locks it. Single direction VMGX-1 gates use a Magnetic Lock, while the bi-directional VMGX-2 uses a Shear Lock. Both operate in a Fail-Safe mode.

| Back to Top |

Time Delay Auto Relock - Bi-directional VMGX gates (VMGX-2) feature a time delay auto relock function, which is adjustable from a range of 2 to 30 seconds.

| Back to Top |

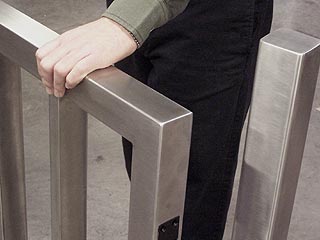

Wider Gate Arm Configuration - Alvarado's VMG gates are available with an extended gate arm assembly up to 42", as shown above.
