Select a feature or option to view further details.
(see datasheet for complete list of features)

FEATURES (ALL)

• Comfortable Passage Width

• Single or Bi-directional Models

• Fully Welded Steel Construction

• Self Closure Mechanism

FEATURES (ELECTRIC)

• Low Voltage Operation

• Electric Locks/Activation

OPTIONS

• Extended Gate Arms

• Fail Lock Electric Strike Lock

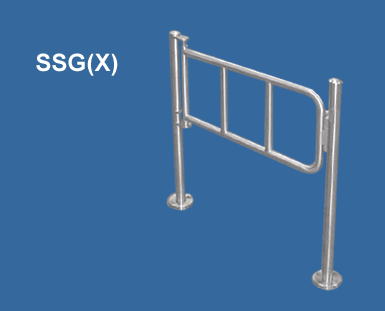

Comfortable Passage Width - When fully open, SSG(X) gates feature approximately 36" of passage width clearance, depending upon model/lock configuration.

| Back to Top |

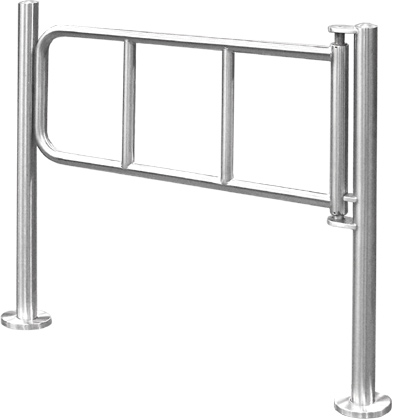

Single or Bi-Directional Gate Swing - Single direction gates include a stop tab and are available with right hand (shown) or left hand swing. Bi-directional gates swing in either direction.

| Back to Top |

Fully Welded Construction - SSG(X) gate arm assemblies and posts are constructed from tubular stainless steel. with all welds ground and polished smooth.

| Back to Top |

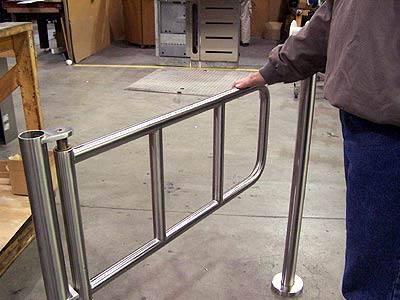

Self-Closing - SSG(X) gates include a gravity closure mechanism that automatically swings the gate arm back to the closed position after passage.

| Back to Top |

Low Voltage Operation - Standard input power requirement is 120 VAC. Primary power is stepped down and rectified for low voltage 12 VDC operation. The included step down transformer is shown being connected to conduit lead wires.

| Back to Top |

Activation - SSGX gates feature an Electric Strike Lock which is activated via dry contact switch. Standard configuration is Fail-Safe.

| Back to Top |

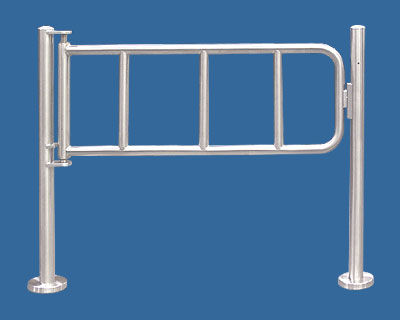

Wider Gate Configuration - Alvarado's SSG gates are available with an extended gate arm assembly up to 42", as shown above.

| Back to Top |

Fail-Lock Option - The Electric Strike Lock may also be ordered in an optional Fail-Lock configuration.
