Select a feature or option to view further details.

FEATURES (ALL)

• Comfortable Passage Width

• Stainless Steel Internal Components

• Key Override Controls

• Dampened, Self-Centering Arm Rotation

FEATURES (ELECTRIC)

• Low Voltage Power Input

• Simple Activation

• Turnstile Rotation Feedback Signal

OPTIONS

• Fail Safe Operation

• Battery Powered Counters

• External Step-Down Transformer

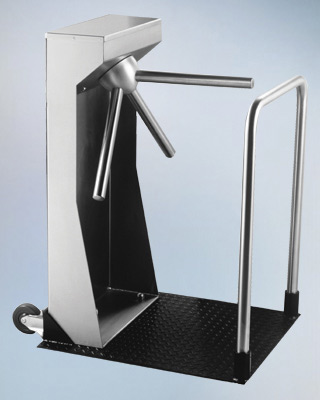

• Portable Base

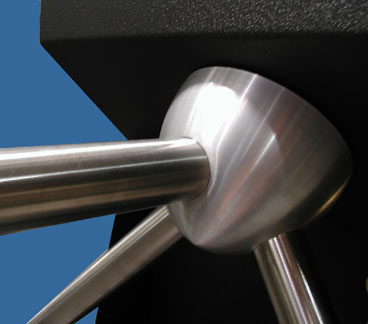

Comfortable Passage - This closeup view of the SLT shows the unique, bullet-style aluminum head and stainless steel arms that are angled to provide a very comfortable patron passage width.

| Back to Top |

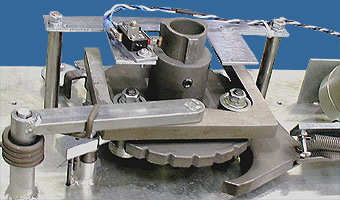

Stainless Steel Components - SLT turnstiles feature stainless steel investment grade castings and hardened stainless steel locking components to ensure a consistent, smooth rotation and years of trouble-free service..

| Back to Top |

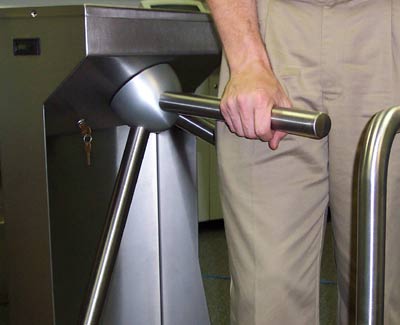

Key Override Controls- This standard SLT feature allows turnstile to be locked/unlocked in either passage direction.

| Back to Top |

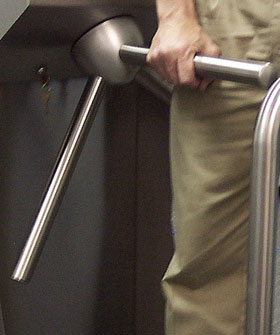

Dampened Arm Rotation - The SLT turnstile's comfortable patron passage width is combined with a smooth, self-centering, hydraulically dampened arm rotation.

| Back to Top |

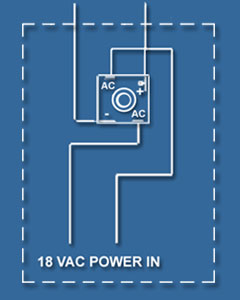

Electric Features - The SLTX has a power input requirement of 18 VAC, which is rectified for low voltage DC operation

| Back to Top |

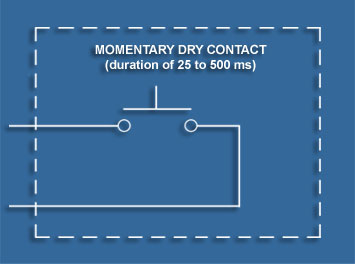

Activation Interface - Alvarado's SLTX turnstiles are activated (unlocked) by supplying a momentary dry contact. No additional interface relay is required.

| Back to Top |

Turnstile Rotation Feedback Signal - A feedback signal in the form of a relay output is sent each time there is a turnstile rotation. Individual signals are provided for each direction of rotation.

| Back to Top |

Fail Safe Option - Replaces the standard Fail Lock mode for electrically controlled SLT turnstiles (SLTX). The Fail Safe option allows free rotation upon loss of power for one or both electrically controlled directions.

| Back to Top |

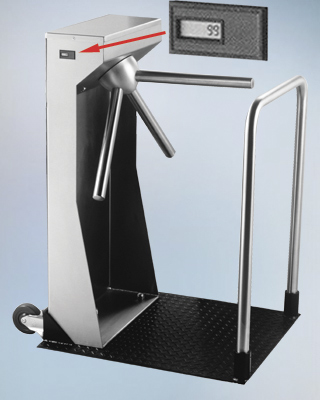

Counters - SLT turnstiles are available with resettable or non-resettable lithium battery powered counters recessed into the turnstile.

| Back to Top |

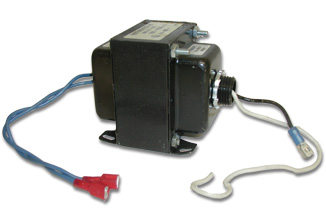

External Step-Down Transformer - A 120 or 220 Volt transformer may be ordered for the SLTX which steps down power to the required 18 VAC input.
