Select a feature or option to view further details.

FEATURES (ALL)

• Comfortable Full Height Passage

• Fully Welded Steel Construction

• Dampened Self Closure Mechanism

FEATURES (ELECTRIC)

• Low Voltage Operation

• Electric Locks/Activation

OTHER OPTIONS/FEATURES

• Wider Gate Configuration

• Card Swipe/Reader Mounting

• Steel Mesh Infill

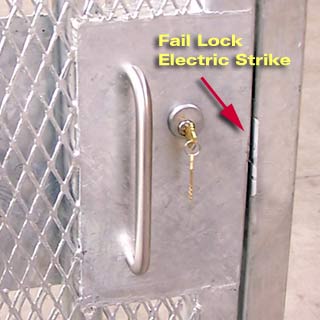

• Fail Lock Electric Strike Lock

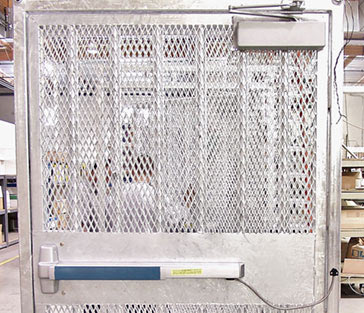

• Push Release Exit Bar - Electric Microswitch

• Push Release Exit Bar - Mechanical

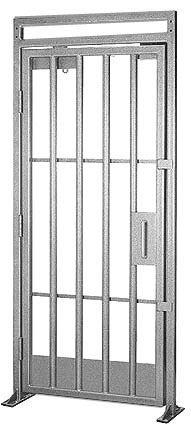

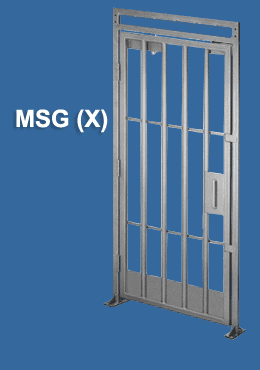

Passage Clearance - When fully open, the MSG provides a clearance of approximately 36" W x 84" H.

| Back to Top |

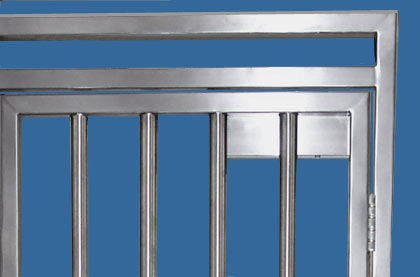

Fully Welded Construction - Alvarado's rugged MSG gates feature fully welded tubular steel construction, with all welds ground and polished smooth. Gates are shipped fully assembled, ready for installation.

| Back to Top |

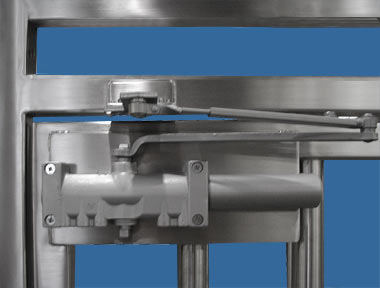

Dampened Gate Closure - MSG(X) gates feature hydraulically dampened self-closure to prevent the gate from slamming.

| Back to Top |

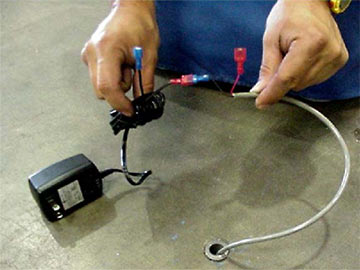

Low Voltage Operation - Standard input power requirement is 120 VAC. Primary power is stepped down and rectified for low voltage 12 VDC operation. The included step down transformer is shown being connected to conduit lead wires.

| Back to Top |

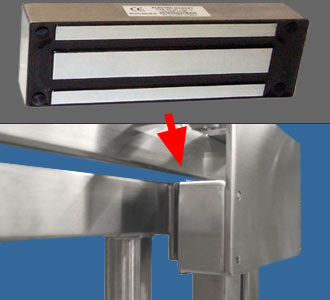

Electric Locks/Activation - MSGX and MSGX-PX gates use a fail-safe magnetic lock which is activated (unlocked) when a sustained normally closed input switch is applied. The gate relocks after the gate is closed and the switch is released, closing the circuit. Models using an electric strike lock (MSGX-E) are also available.

| Back to Top |

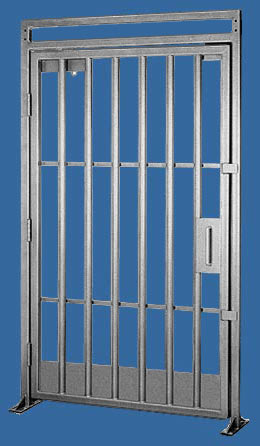

Wider Gate - MSG gates are also available in a 48" gate width.

| Back to Top |

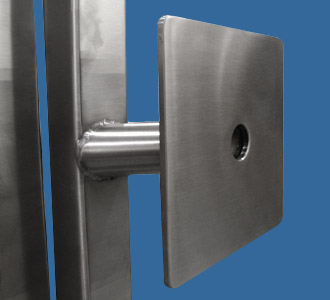

Card Reader Mounting - Alvarado's MSGX gates may be ordered with optional card reader mounting plates.

| Back to Top |

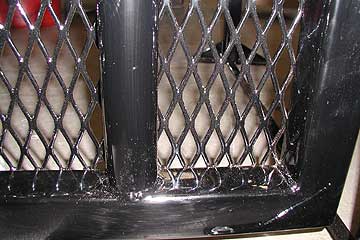

Steel Mesh Infill - MSG (manual deadbolt), MSGX-PX and MSGX-E models include steel mesh infill material welded to the gate for added security.

| Back to Top |

| Back to Top |

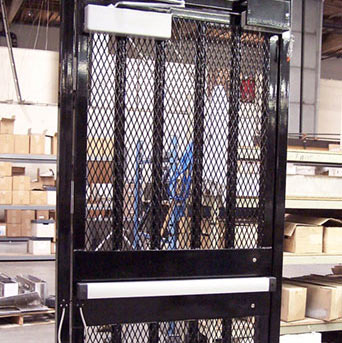

Mechanical Push Bar - MSG (manual deadbolt) and MSGX-E (electric strike) models include a mechanical push-release bar for gate exit (MSGX48-E shown).
